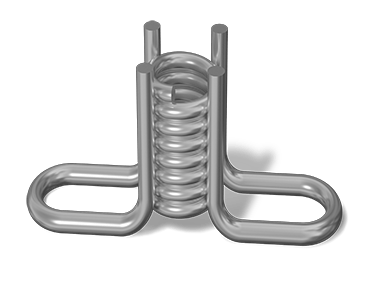

Flared Coil Loop Inserts - Image 2

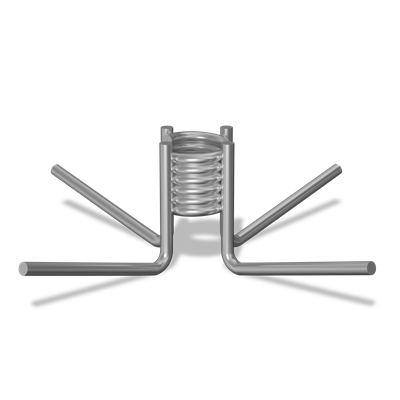

Thin Slab Coil

Flared Coil Loop Inserts

Available options

SKU: N/A Category: Fixation

Description

Description

Contact Sales Rep

Flared Coil Loop Inserts are designed as primary lifting inserts. The flared loops on either side reduce the depth of embedment, reducing the concern of interference with rebar reinforcing running near the edge of the element. These inserts perform under both tensile and shear loading. Proper installation requires the insert to be cast perpendicular to the face of the element, with the opening to the threads level to the face of the element. Any misalignment of the insert will result in a reduction of safe working load capacity.

Product Details

Flared Coil Loop Inserts

Part number	Thread Size (In.)	Height in	Overall Length	Finish	Wire diameter in	Tpi	Safe Working Load	Safety factor	Ult. Mech. Load	Item wt ea	Box/Skid	Box/Bag/Drum	hf:att:pa_thread-size-in	hf:att:pa_overall-length	hf:att:pa_safe-working-load	hf:att:pa_ult-mech-load
CI12134CW	1/2	1-3/4	4	Zinc-Plated	.262	6	950	4:1	3800	.21 lbs	120	Flared Coil Loop Inserts quantity Each Add to Quote	1-2	4	950	3800
CI342516CW	3/4	2-5/16	5-1/4	Zinc-Plated	.306	4.5	2000	4:1	8000	.57 lbs	50	Flared Coil Loop Inserts quantity Each Add to Quote	3-4	5-1-4	2000	8000
CI34312CW	3/4	3-1/2	6	Zinc-Plated	.306	4.5	3400	4:1	13600	.67 lbs	40	Flared Coil Loop Inserts quantity Each Add to Quote	3-4	6	3400	13600
CI1212CW	1	2-1/2	6	Zinc-Plated	.306	4.5	1950	4:1	7800	.82 lbs	30	Flared Coil Loop Inserts quantity Each Add to Quote	1	6	1950	7800
CI1412CW	1	4-1/2	6	Zinc-Plated	.306	3.5	4000	4:1	16000	1 lbs	25	Flared Coil Loop Inserts quantity Each Add to Quote	1	6	4000	16000
CI343TS	3/4	3	7-1/8	Zinc-Plated	.306	4.5	2000	4:1	8000	.66 lbs	25	Flared Coil Loop Inserts quantity Each Add to Quote	3-4	7-1-8	2000	8000
