Description

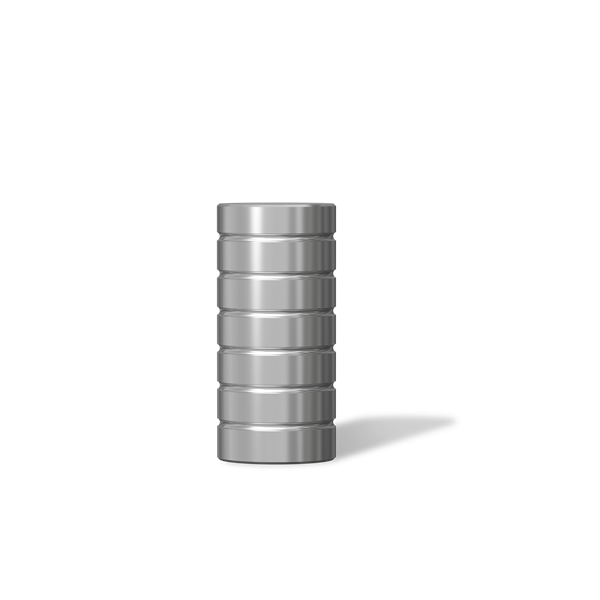

Our Ferrule only inserts are provided for custom fabrication on-site or in plant. Ferrules are UNC threaded, made from steel or stainless steel, and come in zinc plated or plain finishes.
Ferrule Insert
Ferrule Insert
Ferrule Insert
| Part number | Threads in | Height (in.) | Finish | Tpi | Item wt ea | Box/Skid | Box/Bag/Drum | hf:att:pa_height | hf:att:pa_finish |
|---|---|---|---|---|---|---|---|---|---|
| F14Z | 1/4 | 1-1/4 | Zinc-Plated | 20 | .07 lbs | 500/crate | 1-1-4 | zinc-plated | |
| F14SS | 1/4 | 1-1/4 | Stainless Steel | 20 | .07 lbs | 500/crate | 1-1-4 | stainless-steel | |
| F38Z | 3/8 | 1-1/4 | Zinc-Plated | 16 | .05 lbs | 500/crate | 1-1-4 | zinc-plated | |
| F38SS | 3/8 | 1-1/4 | Stainless Steel | 16 | .05 lbs | 500/crate | 1-1-4 | stainless-steel | |
| F38P | 3/8 | 1-1/4 | Plain | 16 | .05 lbs | 250/crate | 1-1-4 | plain | |
| F12Z | 1/2 | 1-3/8 | Zinc-Plated | 13 | .11 lbs | 500/crate | 1-3-8 | zinc-plated | |
| F12SS | 1/2 | 1-3/8 | Stainless Steel | 13 | .11 lbs | 500/crate | 1-3-8 | stainless-steel | |
| F58Z | 5/8 | 1-5/8 | Zinc-Plated | 11 | .15 lbs | 250/crate | 1-5-8 | zinc-plated | |
| F34Z | 3/4 | 1-5/8 | Zinc-Plated | 10 | .17 lbs | 250/crate | 1-5-8 | zinc-plated | |
| F34P | 3/4 | 1-5/8 | Plain | 10 | .19 lbs | 250/crate | 1-5-8 | plain | |
| F78Z | 7/8 | 1-5/8 | Zinc-Plated | 9 | .35 lbs | 100/crate | 1-5-8 | zinc-plated | |
| F1Z | 1 | 1-5/8 | Zinc-Plated | 8 | .38 lbs | 100/crate | 1-5-8 | zinc-plated |
You may also like…
-

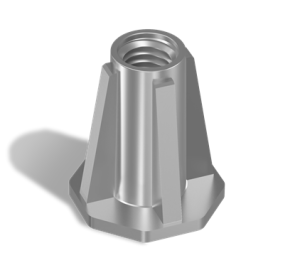

Select options This product has multiple variants. The options may be chosen on the product pageZinc Concrete Inserts
-

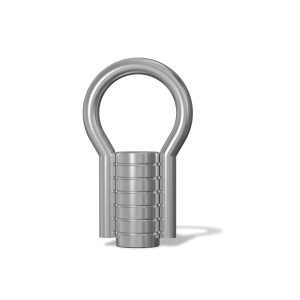

Select options This product has multiple variants. The options may be chosen on the product pageFerrule Loop Inserts
-

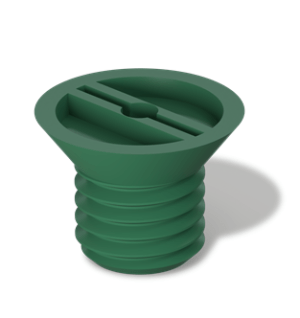

Select options This product has multiple variants. The options may be chosen on the product pageAdapter Plugs
-

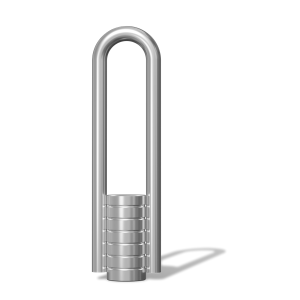

Select options This product has multiple variants. The options may be chosen on the product pageStraight Ferrule Loop Inserts
