Name: CAM LOCK-SPA-STIR Double Cage Spacers
SKU: 10060
Availability: OutOfStock

Description

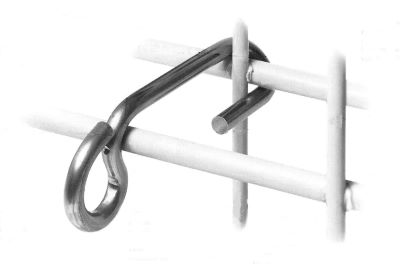

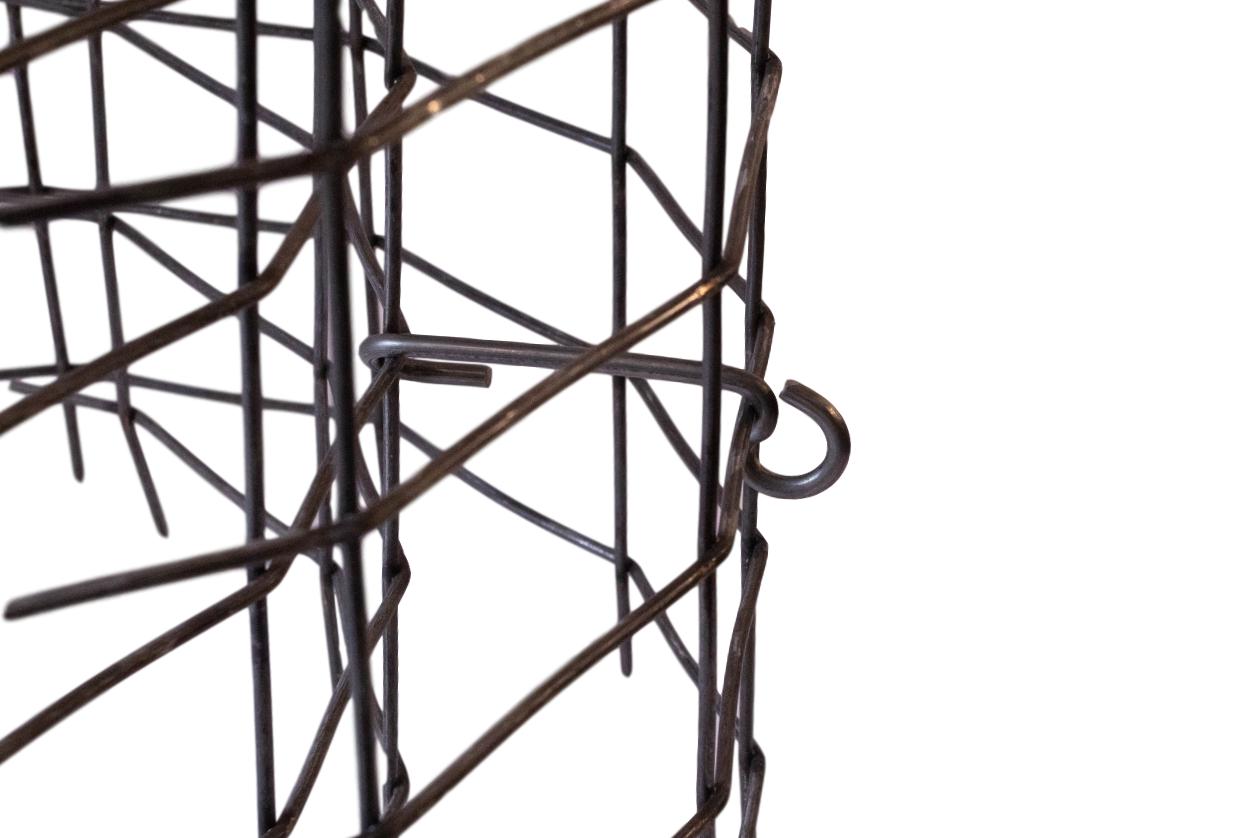

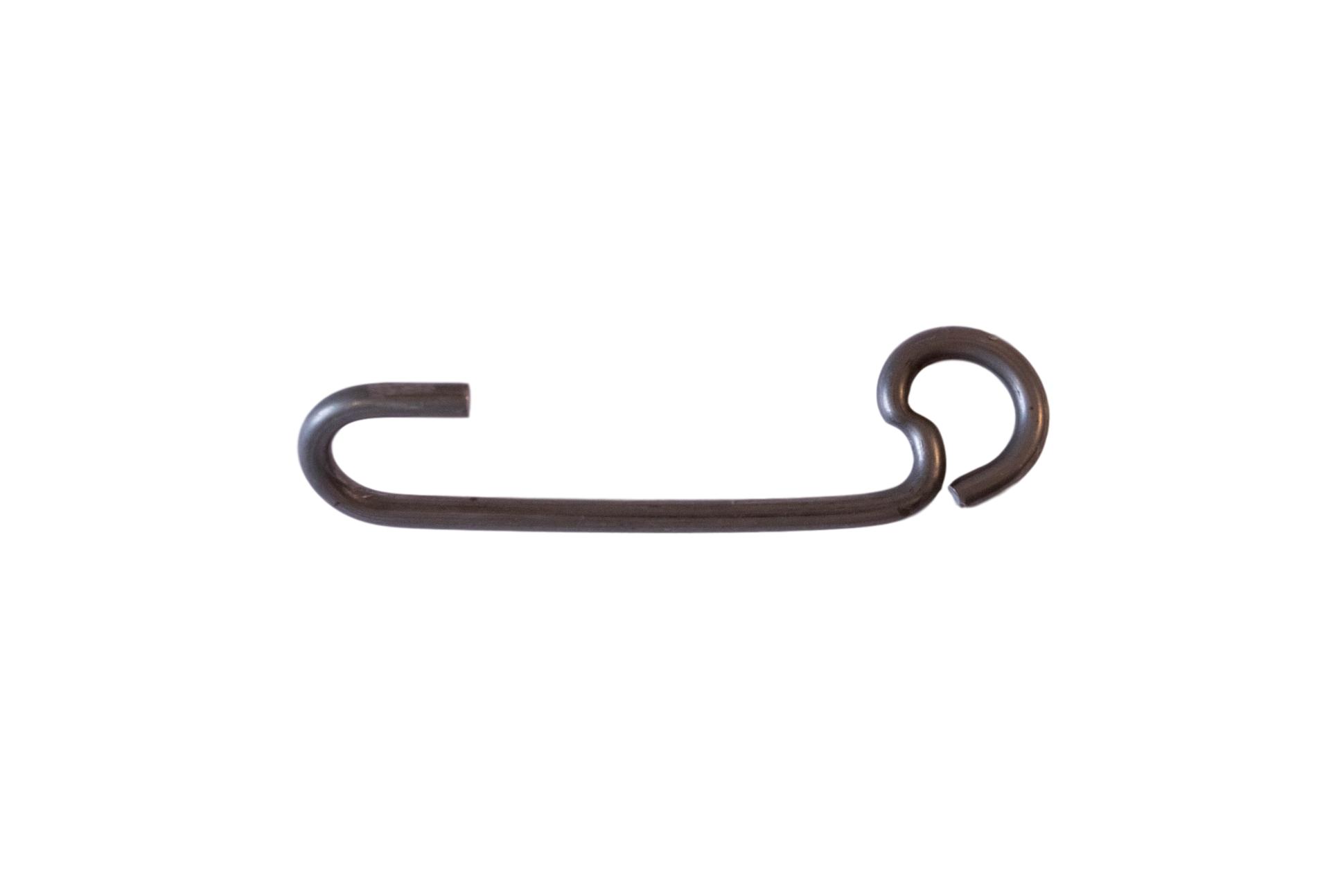

The CAM LOCK Spa-Stir spacer automatically locks two cages into an integral unit of reinforcement and spaces from a single form surface to achieve the proper concrete cover. Just snap the Spa-Stir into place and it is securely locked.

Key Benefits

Made in the USA. USA-made steel.
Accurately spaces two cages of reinforcement in concrete pipe
Easy, snap-on installation
Fits any mesh spacing including spiral cages
Standard sizes available for 27” through 126” diameter B wall concrete pipe
Standard sizes available for 36” through 96” diameter C wall concrete pipe
Some pipe sizes available with 1-1/4″ cover
Standard sizes in stock for immediate shipment
Additional sizes available upon request.

To request a quote online, find your products in the table below, enter your quantities and click “Add to Quote” for each item you want quoted. When finished, click the “View cart” link to complete and submit your request. If you are ready to order, use the same form and include your P.O. (if applicable) and any shipping or special instructions in the comments field.

CAM LOCK-SPA-STIR Double Cage Spacers

Part Number

Cover

B.B. Dimensions

Qty per Box/Bag/Drum

Box/Skid

Reinforcement Type

Price

Box/Bag/Drum

hf:att:pa_cover

SB-27B-1-X-1.125

1.125"

500/box

Wire

Call for Quote

CL-27B-1-X-1.25

1.25"

500/box

Wire

Call for Quote

SB-30B-1-X-1.375

1.375"

500/box

Wire

Call for Quote

CL-30B-1-X-1.50

1.50"

500/box

Wire

Call for Quote

SB-33B/NS-24C-1-X-1.625

1.625"

500/box

Wire

Call for Quote

CL-33B-1-X-1.75

1.75"

500/box

Wire

Call for Quote

SB-36B/NS-27C-1-X-1.875

1.875"

500/box

Wire

Call for Quote

CL-36B-1-X-2.00

2.00"

500/box

Wire

Call for Quote

SB-39B/NS-30C-1-X-2.125

2.125"

500/box

Wire

Call for Quote

CL-39B-1-X-2.25

2.25"

500/box

Wire

Call for Quote

SB-42B/NS-33C-1-X-2.375

2.375"

500/box

Wire

Call for Quote

CL-42B-1-X-2.50

2.50"

400/box

Wire

Call for Quote

SB-48B-1-X-2.875

2.875"

400/box

Wire

Call for Quote

CL-48B-1-X-3.00

3.00"

400/box

Wire

Call for Quote

SB-54B-1-X-3.375

3.375"

400/box

Wire

Call for Quote

CL-54B-1-X-3.50

3.50"

400/box

Wire

Call for Quote

SB-60B-1-X-3.875

3.875"

400/box

Wire

Call for Quote

CL-60B-1-X-4.00

4.00"

400/box

Wire

Call for Quote

SB-66B-1-X-4.375

4.375"

400/box

Wire

Call for Quote

CL-66B-1-X-4.50

4.50"

250/box

Wire

Call for Quote

SB-72B-1-X-4.875

4.875"

250/box

Wire

Call for Quote

CL-72B-1-X-5.00

5.00"

250/box

Wire

Call for Quote

SB-78B-1-X-5.375

5.375"

250/box

Wire

Call for Quote

CL-78B-1-X-5.50

5.50"

250/box

Wire

Call for Quote

SB-84B-1-X-5.875

5.875"

250/box

Wire

Call for Quote

CL-84B-1-X-6.00

6.00"

250/box

Wire

Call for Quote

SB-90B-1-X-6.375

6.375"

250/box

Wire

Call for Quote

CL-90B-1-X-6.50

6.50"

250/box

Wire

Call for Quote

SB-96B-1-X-6.875

6.875"

250/box

Wire

Call for Quote

CL-96B-1-X-7.00

7.00"

250/box

Wire

Call for Quote

SB-102B-1-X-7.375

7.375"

250/box

Wire

Call for Quote

CL-102B-1-X-7.50

7.50"

250/box

Wire

Call for Quote

SB-108B-1-X-7.875

7.875"

250/box

Wire

Call for Quote

CL-108B-1-X-8.00

8.00"

250/box

Wire

Call for Quote

SB-120B-1-X-8.875

8.875"

250/box

Wire

Call for Quote

CL-120B-1-X-9.00

9.00"

250/box

Wire

Call for Quote

CL-126B-1-X-9.50

9.5"

250/box

Wire

Call for Quote

SB-42B-1.25-X-1.875

1.25"

1.875"

400/box

Wire

Call for Quote

1-25

SB-48B-1.25-X-2.375

1.25"

2.375"

400/box

Wire

Call for Quote

1-25

SB-54B-1.25-X-2.875

1.25"

2.875"

400/box

Wire

Call for Quote

1-25

SB-60B-1.25-X-3.375

1.25"

3.375"

400/box

Wire

Call for Quote

1-25

SB-66B-1.25-X-3.875

1.25"

400/box

Wire

Call for Quote

1-25

SB-72B-1.25-X-4.375

1.25"

4.375"

250/box

Wire

Call for Quote

1-25

CL-27C-1-X-2.00

2.00"

500/box

Wire

Call for Quote

CL-30C-1-X-2.25

2.25"

500/box

Wire

Call for Quote

CL-33C-1-X-2.50

2.50"

400/box

Wire

Call for Quote

NS-36C-1-X-2.625

2.625"

400/box

Wire

Call for Quote

CL-36C-1-X-2.75

2.75"

400/box

Wire

Call for Quote

NS-42C-1-X-3.125

3.125"

400/box

Wire

Call for Quote

CL-42C-1-X-3.25

3.25"

400/box

Wire

Call for Quote

NS-48C-1-X-3.625

3.625"

400/box

Wire

Call for Quote

CL-48C-1-X-3.75

3.75"

400/box

Wire

Call for Quote

NS-54C-1-X-4.125

4.125"

400/box

Wire

Call for Quote

CL-54C-1-X-4.25

4.25"

400/box

Wire

Call for Quote

CL-24C-1-X-1.75

1.75"

500/box

Wire

Call for Quote

NS-60C-1-X-4.625

4.625"

250/box

Wire

Call for Quote

CL-60C-1-X-4.75

4.75"

250/box

Wire

Call for Quote

NS-66C-1-X-5.125

5.125"

250/box

Wire

Call for Quote

CL-66C-1-X-5.25

5.25"

250/box

Wire

Call for Quote

NS-72C-1-X-5.625

5.625"

250/box

Wire

Call for Quote

CL-72C-1-X-5.75

5.75"

250/box

Wire

Call for Quote

NS-78C-1-X-6.125

6.125"

250/box

Wire

Call for Quote

CL-78C-1-X-6.25

6.25"

250/box

Wire

Call for Quote

NS-84C-1-X-6.625

6.625"

250/box

Wire

Call for Quote

CL-84C-1-X-6.75

6.75"

250/box

Wire

Call for Quote

NS-90C-1-X-7.125

7.125"

250/box

Wire

Call for Quote

CL-90C-1-X-7.25

7.25"

250/box

Wire

Call for Quote

NS-96C-1-X-7.625

7.625"

250/box

Wire

Call for Quote

CL-96C-1-X-7.75

7.75"

250/box

Wire

Call for Quote

CL-102C-1-X-8.25

8.25"

250/box

Wire

Call for Quote

CL-120C-1-X-9.75

9.75"

250/box

Wire

Call for Quote

NS-54C-1.25-X-3.625

1.25"

3.625"

400/box

Wire

Call for Quote

1-25

NS-66C-1.25-X-4.625

1.25"

4.625"

250/box

Wire

Call for Quote

1-25

NS-72C-1.25-X-5.125

1.25"

5.125"

250/box

Wire

Call for Quote

1-25

NS-78C-1.25-X-5.625

1.25"

5.625"

250/box

Wire

Call for Quote

1-25

NS-84C-1.25-X-6.125

1.25"

6.125"

250/box

Wire

Call for Quote

1-25

CL-84C-1.25-X-6.25

1.25"

6.25"

250/box

Wire

Call for Quote

1-25
