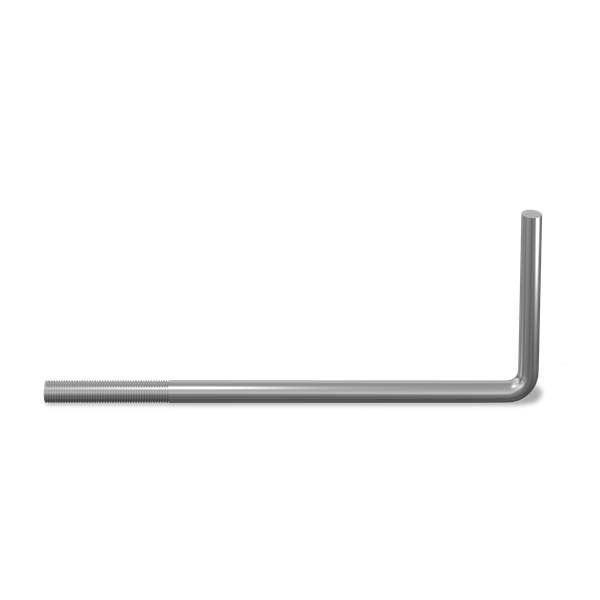

Our Anchor Bolts are designed to fix embed structures, columns, sign structures, and many other structural objects to precast concrete. They are L-shaped for added strength. They are made of steel with a course thread and partial thread type.
| Part number | Diameter (in.) | Overall Length | Finish | Grade | Item wt ea | Box/Skid | Box/Bag/Drum | hf:att:pa_plaswheels-diameter | hf:att:pa_overall-length | hf:att:pa_finish |
|---|---|---|---|---|---|---|---|---|---|---|
| AB3418G | 3/4 | 18 | HDG | A36 | 2.58 lbs | EA | 3-4-2 | 18 | hdg | |
| AB3456G | 3/4 | 56 | HDG | A36 | 6.80 lbs | EA | 3-4-2 | 56 | hdg | |
| AB3418F1554GR55 | 3/4 | 18 | HDG | GR55 | 2.58 lbs | EA | 3-4-2 | 18 | hdg | |
| AB136G | 1 | 36 | HDG | A36 | 7.21 lbs | EA | 1 | 36 | hdg | |
| AB124P | 1 | 24 | Plain | A36 | 5.56 lbs | EA | 1 | 24 | plain | |
| AB124G | 1 | 24 | HDG | A36 | 5.56 lbs | EA | 1 | 24 | hdg | |
| AB11824P | 1 1/8 | 24 | Plain | NA | 7.21 lbs | EA | 1-1-8 | 24 | plain | |
| AB12734G | 1/2 | 7-3/4 | HDG | A36 | 5.56 lbs | 300/crate | 1-2 | 7-3-4 | hdg |
